High risk correctional facility cell luminaire

Surface-mounted IP65 prison cell luminaire approved for ceiling & wall fixing, available in two linear lengths and a circular bulkhead with heavy-duty clear frosted lenses.

Key features:

IP65, 50 joule impact resistance (IK10 'plus') construction
Multiple options sizes and WAP version available
Anti-ligature design
Up to 113W
Up to 12,400lm
Clear frosted polycarbonate lens

Available in multiple variations

Protectalux

Size 820mm to 1420mm

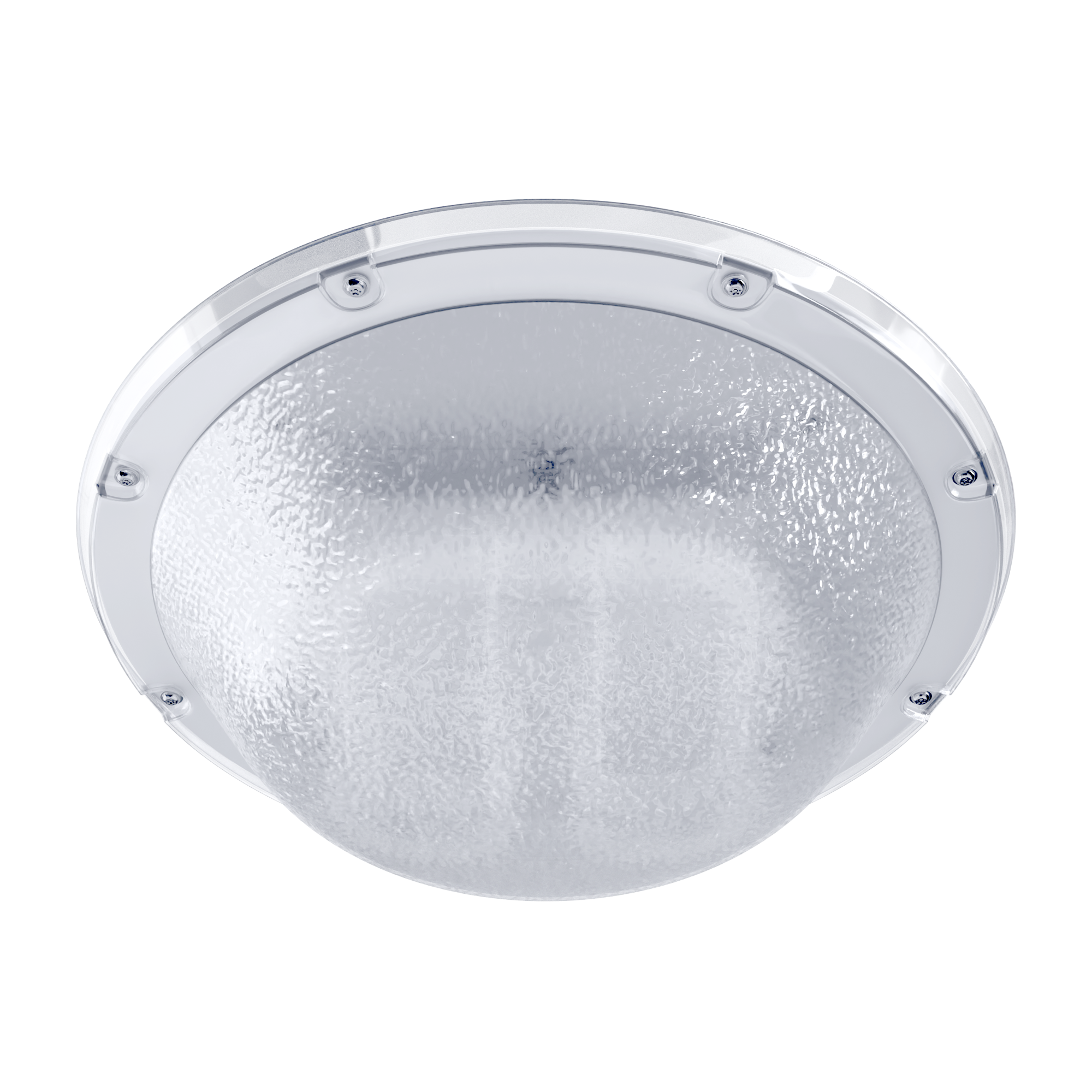

Protectalux R

As well as lighting, this size can also be used as a Modular Cell WAP enclosure
460mm diameter

Luminaire overview

Design

Body constructed from 1.5mm pre-treated mild steel and powder coated to RAL9010 semi-gloss encapsulated by lens, c/w 1.2mm pre-treated and powder-coated mild steel demountable geartray.

Optic

Choice of 5mm or 8mm clear frosted lenses available for both Protectalux L and Protectalux R. The lens can withstand extreme impact making this optic IK10+

Electrical

Standard options for control are Fixed Output, DALI (DT8 for ReGen), and Casambi.

Night Light option available on Protectalux L
Night Light mode (where the option is supplied) is MelaGen® Calm.
No Night Light available on Protectalux R

Optional battery backup.
Battery backup option on Protectalux L
No battery backup option on Protectalux R.

Wattage: 17W - 113W

Light Source

Highly efficient LED 3000K or 4000K sources, CRI Ra90.

Lumen output: 1,800lm - 12,400lm

Product Configurator

Product	Family	CCT	Control	Output (lm)	Watts	Optical Description	Efficacy (lm/W)	Stock Status	Actions
Protectalux R 8mm Frosted Lens 700mA Casambi 4000K Ra90 PRLUXR.F8.0700CS.4090AA	Protectalux R	4000K	Wireless	3700	33	Diffuse	112	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 700mA Casambi 3000K Ra90 PRLUXR.F5.0700CS.3090AA	Protectalux R	3000K	Wireless	3700	33	Diffuse	112	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 700mA Casambi 4000K Ra90 PRLUXR.F5.0700CS.4090AA	Protectalux R	4000K	Wireless	3900	33	Diffuse	118	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 400mA Casambi 4000K Ra90 PRLUXR.F8.0400CS.4090AA	Protectalux R	4000K	Wireless	2300	20	Diffuse	115	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 400mA Casambi 3000K Ra90 PRLUXR.F8.0400CS.3090AA	Protectalux R	3000K	Wireless	2200	20	Diffuse	110	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 700mA DALI Dimmable 4000K Ra90 PRLUXR.F8.0700DD.4090AA	Protectalux R	4000K	DALI Dimmable	3700	33	Diffuse	112	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 400mA DALI Dimmable 3000K Ra90 PRLUXR.F8.0400DD.3090AA	Protectalux R	3000K	DALI Dimmable	2200	20	Diffuse	110	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 400mA DALI Dimmable 4000K Ra90 PRLUXR.F8.0400DD.4090AA	Protectalux R	4000K	DALI Dimmable	2300	20	Diffuse	115	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 700mA Casambi 3000K Ra90 PRLUXR.F8.0700CS.3090AA	Protectalux R	3000K	Wireless	3500	33	Diffuse	107	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 400mA Casambi 4000K Ra90 PRLUXR.F5.0400CS.4090AA	Protectalux R	4000K	Wireless	2400	20	Diffuse	121	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 400mA Casambi 3000K Ra90 PRLUXR.F5.0400CS.3090AA	Protectalux R	3000K	Wireless	2300	20	Diffuse	115	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 700mA DALI Dimmable 3000K Ra90 PRLUXR.F8.0700DD.3090AA	Protectalux R	3000K	DALI Dimmable	3500	33	Diffuse	107	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 400mA Fixed Output 4000K Ra90 PRLUXR.F8.0400FO.4090AA	Protectalux R	4000K	Fixed Output	2300	20	Diffuse	115	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 400mA DALI Dimmable 3000K Ra90 PRLUXR.F5.0400DD.3090AA	Protectalux R	3000K	DALI Dimmable	2300	20	Diffuse	115	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 700mA Fixed Output 3000K Ra90 PRLUXR.F8.0700FO.3090AA	Protectalux R	3000K	Fixed Output	3500	33	Diffuse	107	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 400mA Fixed Output 3000K Ra90 PRLUXR.F8.0400FO.3090AA	Protectalux R	3000K	Fixed Output	2200	20	Diffuse	110	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 700mA DALI Dimmable 4000K Ra90 PRLUXR.F5.0700DD.4090AA	Protectalux R	4000K	DALI Dimmable	3900	33	Diffuse	118	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 400mA DALI Dimmable 4000K Ra90 PRLUXR.F5.0400DD.4090AA	Protectalux R	4000K	DALI Dimmable	2400	20	Diffuse	121	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 700mA DALI Dimmable 3000K Ra90 PRLUXR.F5.0700DD.3090AA	Protectalux R	3000K	DALI Dimmable	3700	33	Diffuse	112	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 700mA Fixed Output 3000K Ra90 PRLUXR.F5.0700FO.3090AA	Protectalux R	3000K	Fixed Output	3700	33	Diffuse	112	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 8mm Frosted Lens 700mA Fixed Output 4000K Ra90 PRLUXR.F8.0700FO.4090AA	Protectalux R	4000K	Fixed Output	3700	33	Diffuse	112	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 700mA Fixed Output 4000K Ra90 PRLUXR.F5.0700FO.4090AA	Protectalux R	4000K	Fixed Output	3900	33	Diffuse	118	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 400mA Fixed Output 3000K Ra90 PRLUXR.F5.0400FO.3090AA	Protectalux R	3000K	Fixed Output	2300	20	Diffuse	115	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux R 5mm Frosted Lens 400mA Fixed Output 4000K Ra90 PRLUXR.F5.0400FO.4090AA	Protectalux R	4000K	Fixed Output	2400	20	Diffuse	121	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Calm Ra90 with Maintained Battery Backup PRLUXLS.F8.0400FO.RF90AA.BM	Protectalux L Small	2200K	Fixed Output	5300	58	Diffuse	91	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Calm Ra90 with Fixed Output MelaGen® Calm Nightlight with Maintained Battery Backup PRLUXLS.F8.0400FO.RF90AA.NF.BM	Protectalux L Small	2200K	Fixed Output	5300	58	Diffuse	91	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Calm Ra90 with DALI Dimmable MelaGen® Calm Nightlight with Maintained Battery Backup PRLUXLS.F8.0400FO.RF90AA.ND.BM	Protectalux L Small	2200K	Fixed Output	5300	58	Diffuse	91	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Active Ra90 with Maintained Battery Backup PRLUXLS.F8.0400FO.BL90AA.BM	Protectalux L Small	4200K	Fixed Output	5900	56	Diffuse	106	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Active Ra90 with Fixed Output MelaGen® Calm Nightlight with Maintained Battery Backup PRLUXLS.F8.0400FO.BL90AA.NF.BM	Protectalux L Small	4200K	Fixed Output	5900	56	Diffuse	106	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Calm Ra90 with Fixed Output MelaGen® Calm Nightlight PRLUXLS.F8.0400FO.RF90AA.NF	Protectalux L Small	2200K	Fixed Output	5300	58	Diffuse	91	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Active Ra90 with DALI Dimmable MelaGen® Calm Nightlight with Maintained Battery Backup PRLUXLS.F8.0400FO.BL90AA.ND.BM	Protectalux L Small	4200K	Fixed Output	5900	56	Diffuse	106	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Calm Ra90 with DALI Dimmable MelaGen® Calm Nightlight PRLUXLS.F8.0400FO.RF90AA.ND	Protectalux L Small	2200K	Fixed Output	5300	58	Diffuse	91	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Active Ra90 with DALI Dimmable MelaGen® Calm Nightlight PRLUXLS.F8.0400FO.BL90AA.ND	Protectalux L Small	4200K	Fixed Output	5900	56	Diffuse	106	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Active Ra90 PRLUXLS.F8.0400FO.BL90AA	Protectalux L Small	4200K	Fixed Output	5900	56	Diffuse	106	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Calm Ra90 PRLUXLS.F8.0400FO.RF90AA	Protectalux L Small	2200K	Fixed Output	5300	58	Diffuse	91	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 4000K Ra90 with Maintained Battery Backup PRLUXLS.F8.0400FO.4090AB.BM	Protectalux L Small	4000K	Fixed Output	4900	39	Diffuse	127	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output MelaGen° Active Ra90 with Fixed Output MelaGen® Calm Nightlight PRLUXLS.F8.0400FO.BL90AA.NF	Protectalux L Small	4200K	Fixed Output	5900	56	Diffuse	106	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 4000K Ra90 with DALI Dimmable MelaGen® Calm Nightlight with Maintained Battery Backup PRLUXLS.F8.0400FO.4090AB.ND.BM	Protectalux L Small	4000K	Fixed Output	4900	39	Diffuse	127	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 4000K Ra90 PRLUXLS.F8.0400FO.4090AB	Protectalux L Small	4000K	Fixed Output	4900	39	Diffuse	127	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 3000K Ra90 with Maintained Battery Backup PRLUXLS.F8.0400FO.3090AB.BM	Protectalux L Small	3000K	Fixed Output	4700	39	Diffuse	121	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 4000K Ra90 with Fixed Output MelaGen® Calm Nightlight with Maintained Battery Backup PRLUXLS.F8.0400FO.4090AB.NF.BM	Protectalux L Small	4000K	Fixed Output	4900	39	Diffuse	127	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 4000K Ra90 with DALI Dimmable MelaGen® Calm Nightlight PRLUXLS.F8.0400FO.4090AB.ND	Protectalux L Small	4000K	Fixed Output	4900	39	Diffuse	127	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 3000K Ra90 with Fixed Output MelaGen® Calm Nightlight with Maintained Battery Backup PRLUXLS.F8.0400FO.3090AB.NF.BM	Protectalux L Small	3000K	Fixed Output	4700	39	Diffuse	121	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 4000K Ra90 with Fixed Output MelaGen® Calm Nightlight PRLUXLS.F8.0400FO.4090AB.NF	Protectalux L Small	4000K	Fixed Output	4900	39	Diffuse	127	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 3000K Ra90 PRLUXLS.F8.0400FO.3090AB	Protectalux L Small	3000K	Fixed Output	4700	39	Diffuse	121	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA DALI DT8 Dimmable MelaGen° Active Ra90 with Maintained Battery Backup PRLUXLS.F8.0400D8.BL90AA.BM	Protectalux L Small	4200K	DALI DT8 Dimmable	5900	56	Diffuse	106	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 3000K Ra90 with DALI Dimmable MelaGen® Calm Nightlight with Maintained Battery Backup PRLUXLS.F8.0400FO.3090AB.ND.BM	Protectalux L Small	3000K	Fixed Output	4700	39	Diffuse	121	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 3000K Ra90 with Fixed Output MelaGen® Calm Nightlight PRLUXLS.F8.0400FO.3090AB.NF	Protectalux L Small	3000K	Fixed Output	4700	39	Diffuse	121	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA DALI DT8 Dimmable MelaGen° Active Ra90 with DALI Dimmable MelaGen® Calm Nightlight PRLUXLS.F8.0400D8.BL90AA.ND	Protectalux L Small	4200K	DALI DT8 Dimmable	5900	56	Diffuse	106	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Protectalux L Small 8mm Frosted Lens 400mA Fixed Output 3000K Ra90 with DALI Dimmable MelaGen® Calm Nightlight PRLUXLS.F8.0400FO.3090AB.ND	Protectalux L Small	3000K	Fixed Output	4700	39	Diffuse	121	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
